ZigBee and 802.15.4 packet sniffer

TRxSniffer™ keeps CRC-valid 802.15.4 frames, with per-packet RSSI, on the operator PC, and rebuilds analyser files for a later device and time window.

ZigBee and 802.15.4 packet capture

TRxSniffer™ is Windows software for ZigBee packet sniffing and IEEE 802.15.4 packet capture. It records traffic from more than one capture radio on the operator PC. You choose a device and a UTC window, then export analyser files.

The operator provides a device EUI64 and a UTC window. Identify returns the Coordinator, PAN ID, and channel. They then export that window.

The same steps cover a smart-meter HAN. The analyser pictures below are from a home-automation network, with the packets decrypted.

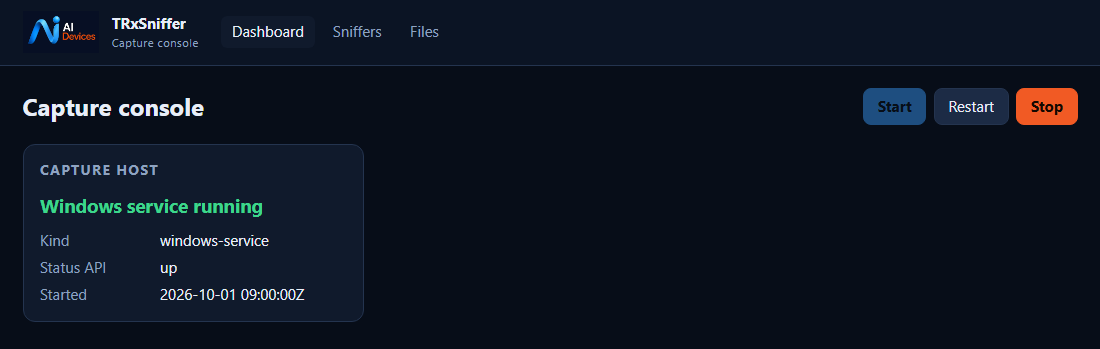

TRxSniffer™ capture console showing the header and the capture host card, with the Windows service running.
Capture host on the operator PC.

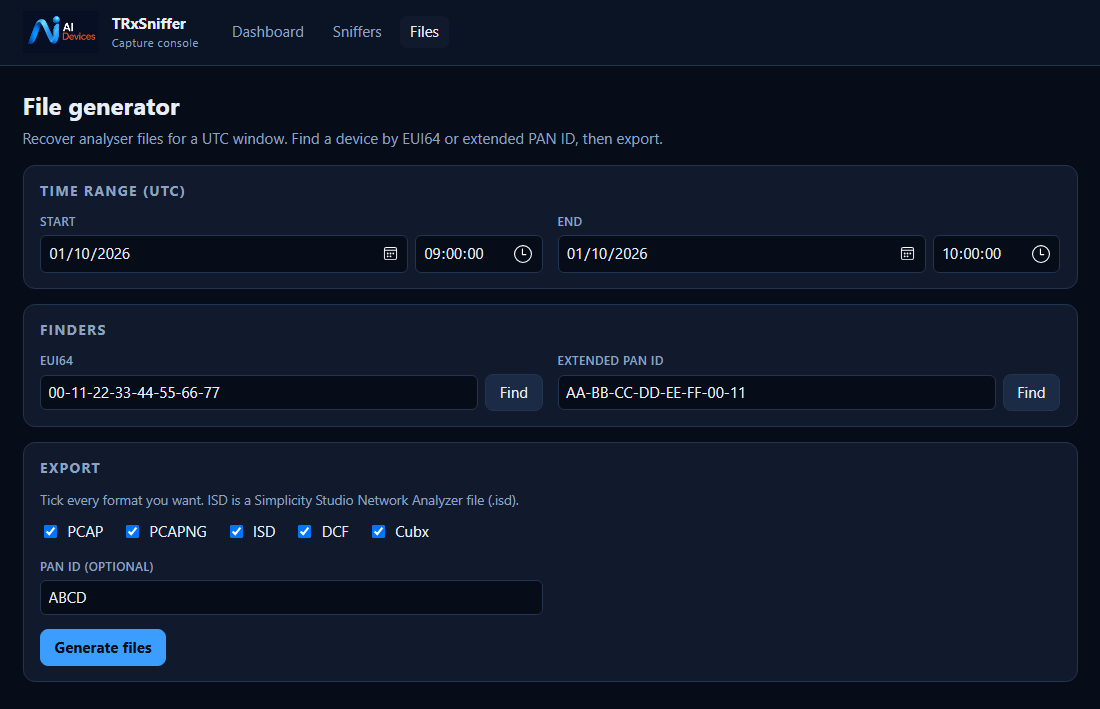

TRxSniffer™ file generator with a sample UTC window, sample EUI64 00-11-22-33-44-55-66-77, sample extended PAN AA-BB-CC-DD-EE-FF-00-11, sample PAN ABCD, and ticks for PCAP, PCAPNG, ISD, DCF, and Cubx.
UTC window, EUI64 finder, extended PAN finder, and export formats. Identifiers in the picture are samples.

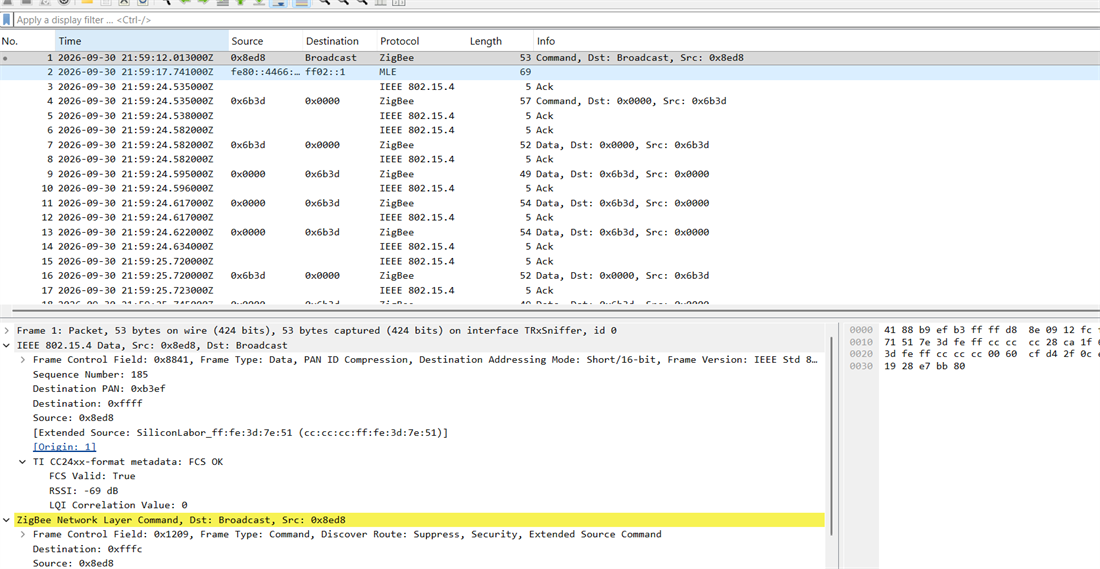

Wireshark opening a recovered PCAP from a home-automation network, with the ZigBee payload decrypted.
Wireshark opening a recovered PCAP from a home-automation network. The ZigBee payload is decrypted.

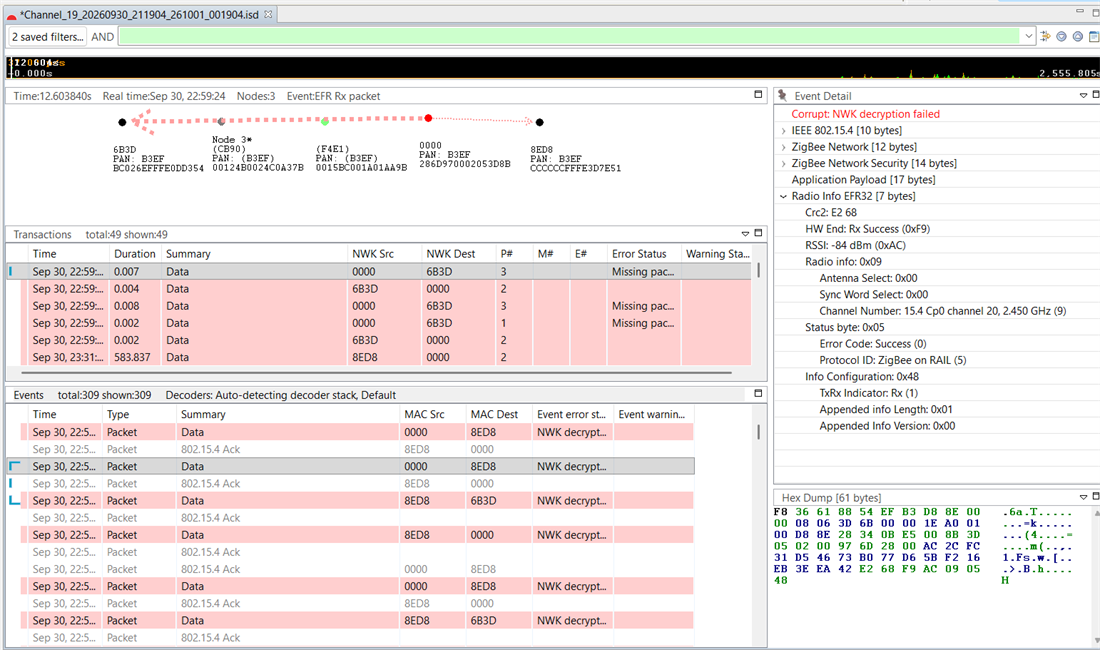

Simplicity Studio Network Analyzer opening a recovered .isd file from a home-automation network, with the network layer decrypted.
Simplicity Studio Network Analyzer opening a recovered .isd. The network layer is decrypted.

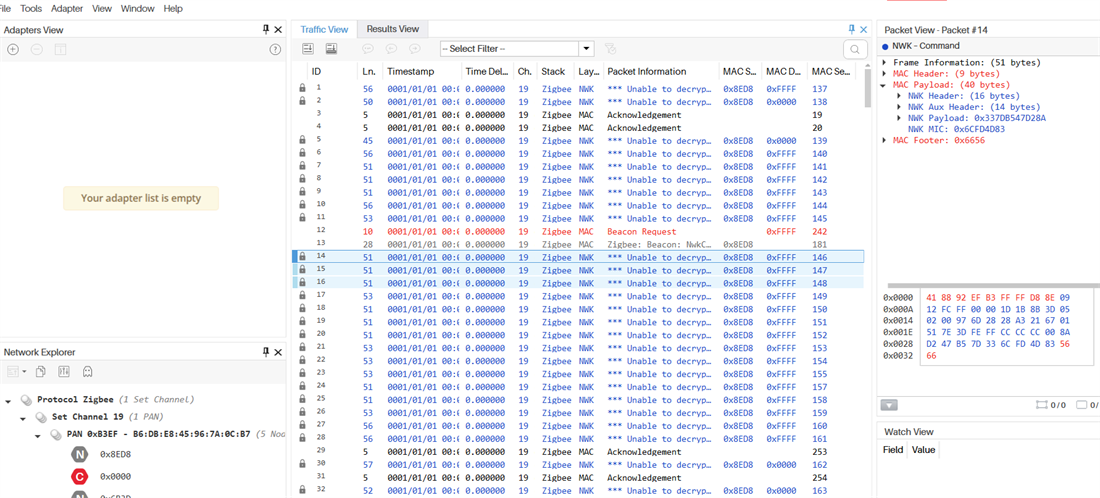

Ubiqua opening a recovered .cubx capture from a home-automation network, with the ZigBee commands decrypted.
Ubiqua opening a recovered .cubx. The ZigBee commands are decrypted.

Compatible capture radios

The recorder is sniffer-hardware agnostic. Supported capture radios are operator-flashed, and you supply the board. One Windows host runs one worker per IEEE channel 11–26.

  • Texas Instruments LAUNCHXL-CC1352R1
  • Texas Instruments CC2531 USB stick already running ZBOSS sniffer firmware
  • Nordic Semiconductor nRF52840
  • Silicon Labs WSTK with MG12, MG21, or MG24

Export formats

Wireshark (.pcap, .pcapng), Silicon Labs Simplicity Studio Network Analyzer (.isd), Daintree SNA (.dcf), and Ubiqua Protocol Analyzer (.cubx). Per-packet RSSI is kept. Decrypt is the analyser’s job. The same window can be opened in more than one protocol analyser.

This release

  • Operator PC
  • Local capture store
  • No remote console in this release
  • No flashing wizard
  • Sub-GHz is not a capture mode

Subscription

TRxSniffer™ is proprietary software. Copyright AI Devices Ltd. Use requires a valid monthly or yearly subscription, enforced by a signed key, with a sniffer-count entitlement.

There is no download on this site. Contact us to ask about access.
